| 形象完整詳細掃碼 |
| 一次掃描，EVI使之前沒法完成的螺栓孔多層查抄。EVI的外表圖象，查驗多層或層疊資料的螺栓孔更清楚。 |
|
高速公路表面掃查 差動線圈及時狀態使得EVI 量化微分和相對的線圈外表 靠近，從而進步和考證查抄 的有用性。. |
|
平頭柳釘外表面掃查 由于金屬外表在飛機布局鉚 釘或緊固件地位，裂紋產生 在鉚釘和緊固件之間。 |
|
焊道表皮和近表皮掃查 裝備uniwest ecs-3s高速掃 描儀. |
- 根基參數
- 利用
- 配件
- PDF產物信息
|

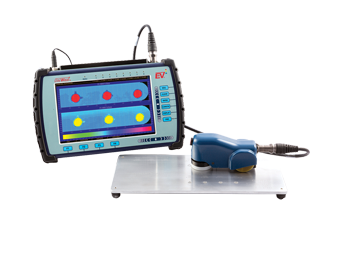

澳大利亞uniwest渦流效應航空運輸探測儀,EVi UNIWEST EVi-跟著外表成像的功效優化uniwest探傷不相上下的精度 |
|
UNIWEST EVi-跟著外表成像的功效優化uniwest探傷不相上下的精度 |
|
為了堅持咱們不時進步無損檢測的精度和效力的傳統，uniwest的電子商務處置計劃團隊開辟的手藝最 進步前輩、操縱簡略單純的便攜式渦流檢測體系— the EVi。 Evi自己的優點：
流通業運用：
|
|
工程由uniwest EC處置計劃團隊，在美國制作，EVi間接與探頭和附件的eddyview。 uniwest不相上下的陣列的規范和可選的旌旗燈號處置，讀出，數據存儲、報警和顯現。 功效設置矯捷利用的一個新的規范，利用便利，數據的詮釋和全體操縱的精確度比以往 任什么時辰候都能夠在一個便攜式檢測體系。 |
GENERAL
Dimensions
• (WxHxD): 13.8" x 8.75" x 2.58"
• Weight: 7 lb 0 oz without batteries, 9 lb 2 oz with 2 batteries Display Size and Resolution
• 10.1" WXGA 1280x800 pixels Operating temperature
• 0 – 45ºC minimum when the battery is charging. 50ºC when operating with a battery or AC but not both.
MEASUREMENTS
• Frequency Range: 120 Hz to 15 MHz
• Gain: 0 dB to 114 dB in 0.1 dB steps
• Rotation: 0 degrees to 359.9 degrees in 0.1 degree steps
• Sweep: 0.001 second to 10 second per division
• Low Pass Filter: 0 to 10 kHz adjustable to 3 digits of precision
• High Pass Filter: 0 to 10 kHz adjustable to 3 digits of precision
• Probe Drive: 2 Vp-p, 4 Vp-p, 7 Vp-p (Also variable from 0 to 7 Vp-p in 1 percent steps)
• Probe Coupling: Monitors the probe to part coupling of a differential probe.
I N P U T S / O U T P U T S
• Power connector: 2.5mm IP68 Locking Connector
• Scanner/Probe Connector: 27 Pin IP68 Connector
• Probe types: Absolute and differential in either bridge or reflection configuration
• X and Y Analog Outputs: 2 SMA connectors for differential, absolute, or combination
• DB25 connector: 8 configurable encoder, sync or other inputs, 8 configurable alarm, multiplexer, or other outputs,
2 dedicated alarm outputs – TTL and open collector
• Alarm outputs: TTL & Open Collector (multi I/O), Audio or Headphone (USB to 3.5mm adaptor)
• Video output: USB will support external monitors (VGA, DisplayPort, or HDMI with adaptors)
• Ethernet: Remotely control the instrument and retrievedata in real time.
• USB port A: Interface to storage devices, keyboard
• USB OTG: Interface to OTG storage devices
• Exportable Files: Report files, data files, settings files
POwER
• Power adaptor requirements: 100-240VAC, 1.4A max
• Power connector: 10VDC-24VDC
• Available batteries: 1 or 2 Lithium DR202i or compatible
• Battery operating time: 5 hours minimum with most scanners, 4 hour recharge rate.
• Battery protection: SMBus V1.1 safety features. Monitor battery thermistors, disconnects, and circuit protection.
Batteries are hot swappable.
• Battery Charging: Instrument will charge batteries using external power
